Aputure INFINIBAR PB6 RGB LED Light Panel (2')
Engineered for versatility and precision, the 2' INFINIBAR PB6 RGB LED Light Panel from Aputure is a go-to solution for creating vibrant, dynamic lighting designs. It features 48 individually controllable pixels and delivers exceptional color accuracy with CRI 96 and TLCI 98 ratings across a variety of color modes. Designed to function as a key light, be seamlessly integrated into sets, or configured into custom shapes using Aputure’s modular connector system (sold separately), the INFINIBAR adapts to a wide range of creative setups.
At its core is a proprietary RGBWW chipset capable of producing a broad color temperature range from 2000K to 10,000K, along with full green-magenta adjustment and advanced control over hue, saturation, and intensity. Multiple INFINIBAR panels—regardless of size—can be connected and synchronized using the Sidus Link app, LumenRadio CRMX, or a wired DMX connection via an optional USB-C to DMX adapter, enabling precise and coordinated lighting control across complex setups.
Lightweight at 2.2 lb, the INFINIBAR features a durable aluminum housing that's also mountable with the included Clamp to Baby Pin Adapter, two 1/4-20" female threads , magnetic spacers, and the Straight Connector for the INFINIBAR Rail system. The unit can be powered with a built-in lithium battery that can operate at 100% brightness for 100 minutes or via the included AC adapter. Alternately, multiple units can share one power supply when linked together with the power-sharing connectors.
Output
- 2' 14W panel light with proprietary RGBWW chipset and 48 individual pixels (or lighting zones)
- 328 lux at 6500K
- 0 to 100% brightness control at increments of .1%
- Nine built-in lighting effects: Fireworks II, Fire II, Paparazzi II, Faulty Bulb II, TV III, Pulsing III, Cop Car III, Lightning III, Party II
- Seven pixel effects: Color Fade, Color Cycle, 1-Pixel Chase, 2-Pixel Chase, 3-Pixel Chase, Rainbow, Pixel Fire
Color
- Fully tunable correlated color temperature (CCT) from 2000 to 10,000K with green and magenta adjustment
- High color standards of CRI: 96+, TLCI: 98+, SSI (D56): 74, SSI (Tungsten): 85, TM-30 Rf: 94, and TM-30 Rg: 103
- Advanced HSI with white point CCT control, industry-standard xy (CIE 1931), RGB, 300+ gel presets, and greater than 90% of colors within Rec.2020 color space
Power
- AC adapter included
- Built-in 29.6Wh lithium battery lasts up to 100 minutes at maximum output
- Smart Battery Life Mode adjusts the runtime to 2, 4, 6, and 8 hours
- Share AC Power over multiple INFINIBARs with connector ecosystem
Connect and Control
- Multiple control methods: Sidus Link App, LumenRadio CRMX, DMX/RDM via USB-C cable available separately
- Straight connector included; nine other splicing connectors available separately (triangle flat, triangle 3D, hexagon flat, hexagon 3D, 3-way flat, 4-way flat, 6-way flat, square flat, and square 3D)
- Infinite blending design to reduce visible gaps when connecting multiple lights

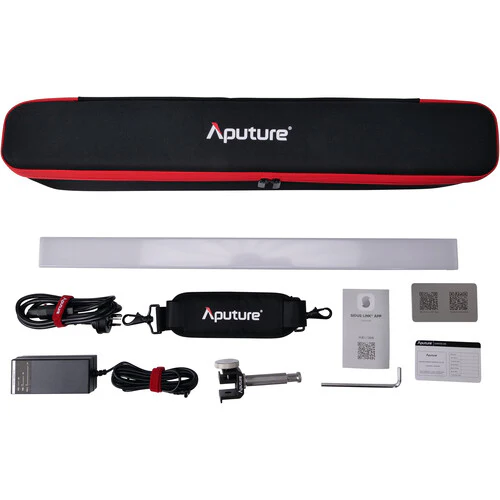

- Included mounting options: Clamp to Baby Pin Adapter, two 1/4-20" female threads, magnetic spacers, and the Straight Connector for the INFINIBAR Rail system
