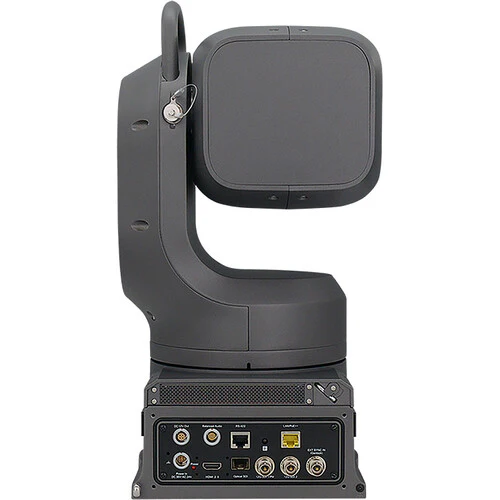

Bolin Technology EXU420N 4K60 Outdoor NDI 6-Ready PTZ Camera (Dark Gray)
Elevate your production with UHD 4K video using the Bolin Technology EXU420N 4K60 Outdoor NDI 6-Ready PTZ Camera (Dark Gray). This high-performance PTZ camera delivers up to UHD 4K60 resolution via 12G-SDI, HDMI, and IP streaming. It supports global NDI transmission with NDI Embedded Bridge and is NDI 6-ready, ensuring seamless integration into existing NDI networks. Equipped with a 1/2.8" CMOS sensor and 8.29MP image capture, it features a 20x optical zoom, 16x digital zoom, and a wide 78.6° field of view. Built for outdoor reliability, it boasts an IP67-rated, nitrogen-filled housing with a wiper, heater, and defroster, while the salt-resistant lens coating ensures durability in harsh weather conditions.
A tally light can be added and removed for use in multi-camera environments. The camera can output two simultaneous IP streams via RTP, RTMP, RTSP, or SRT using H.264, H.265, MJPEG formats, and streaming supports up to UHD 4K60. The camera can be controlled via the included IR remote or via IP using ONVIF or VISCA-over-IP, and via serial using VISCA, Pelco-P or Pelco-D, or via FreeD with an optional firmware upgrade. Audio can be embedded or de-embedded from the stream using the 10-pin LEMO-type audio port. An optional fiber-based SDI module can be added using the SFP slot. The camera can be powered using PoE++ or via an optional power adapter.
Features
- Large 1/2.8" CMOS sensor, 8.29MP
- HDMI, SDI, and IP output up to UHD 4K
- Outdoor design with IP67 waterproof housing and wiper, heater, and defroster
- Supports high-bandwidth NDI and is NDI 6 ready
- With Bolin's NDI Embedded Bridge, the camera can send and receive encrypted NDI streams over WAN from any location globally
- 20x optical, 16x digital zoom
- Large, removable tally light
- LEMO-Type 10-pin audio input/output, with embedding
- Maximum 100°/s pan/tilt in high-speed mode
- Live streaming via RTMP, RTSP, RTP, MP2TS over UDP, TS over RTP/SRT, WebRTC
- On-screen character generator
- PoE++ and 24 VDC power supply options
- Optional laser IR illuminator
- Optional single-mode LC fiber module via SFP slot
