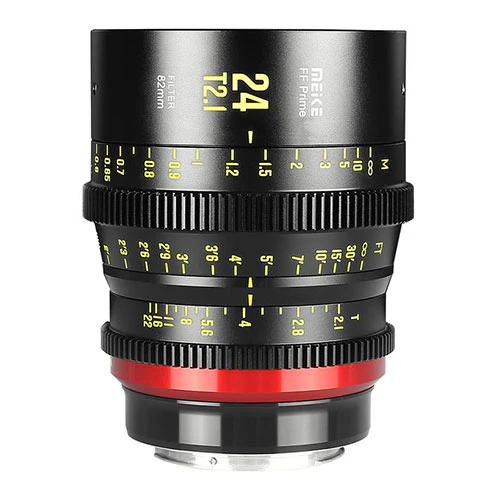

Meike 24mm T2.1 Full Frame Cinema Prime Lens (EF Mount)
The Meike 24mm T2.1 Full Frame Cinema Prime Lens (EF Mount) delivers crisp, cinematic images on full-frame cinema cameras. This 24mm wide-angle prime is part of Meike’s FF Prime series, featuring a 45mm image circle for full-frame coverage. With a fast T2.1 maximum aperture, standard 0.8 MOD focus and iris gears, and an 11-bladed iris for smooth, rounded bokeh, this lens is designed for expressive, professional-grade filmmaking.
Scale markings are provided in both feet and meters, it has an 82mm filter thread, and a focus rotation of 330° allows for precision manual focus adjustment. With a 35mm focal length, this cine lens has a horizontal angle of view of 72.6° with a full-frame sensor and a minimum focus distance of 11.8".
Features
- EF mount
- 24mm image circle for full-frame coverage
- Fast T2.1 maximum aperture
- Cine-standard 0.8 MOD focus and iris gears
- 330° focus rotation
- 14 elements in 9 groups
- 90mm front diameter, 82mm filter thread
- Focus marks in feet and meters
SPECS
| Focal Length | 24mm |
| Lens Mount | Canon EF |
| Lens Format Coverage | Full Frame |
| Image Circle | 45.0 mm |
| Maximum Aperture | T2.1 |
| Minimum Aperture | T22 |
| Diagonal Angle of View | Full Frame: 83.4° APS-C (1.5x): 60.1° |
| Horizontal Angle of View | Full Frame: 72.6° APS-C (1.5x): 51.3° |
| Minimum Focus Distance | From Image Plane: 11.8" / 30 cm |
| Optical Design | 14 Elements in 9 Groups |
| Diaphragm Blades | 11 |
| Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch Iris: 0.8 MOD / 32 Pitch |
| Front Diameter | 90 mm |
| Filter Thread | 82 mm |
| Focus Scales | Metric, Imperial |
| Focus Rotation | 330° |
| Image Stabilization | No |
| Length | 4.3" / 110 mm |
| Weight | 2.4 lb / 1111 g |
| Package Weight | 2.695 lb |
| Box Dimensions (LxWxH) | 7.4 x 5 x 4.9" |
