OVERVIEW

• A whole new set of prime lenses from design to performance
• Covering 52mm
• Smooth and melting out of focus image (cream-like bokeh)
• Superb high resolution provides extra evenly from center to edge of the frame
• Fast lens in an ultra compact body, T number from 1.3
• Barely noticeable breathing effect and distortion
• Great balancing on both optics and mechanics
• PL Mount
• Aluminum and titanium versions match different lever and users
• Latest technology of aspheric lenses provides balanced multi corrections

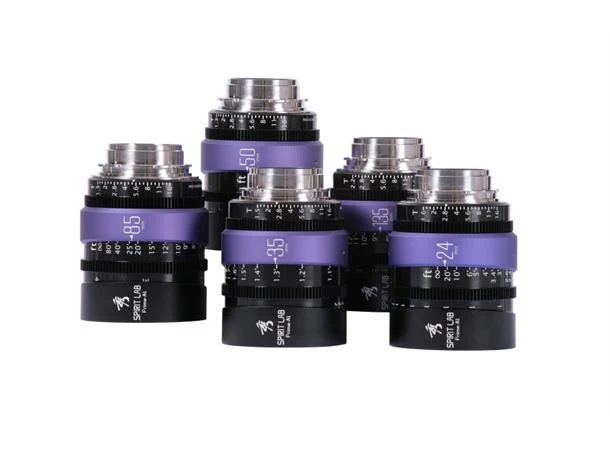

• 24mm, 35mm, 50mm, 85mm, 135mm

The Spirit Lab Prime-Al are spherical lenses with an optical construction comprised of pristine optical elements sourced from Japan, including several high-quality aspherical elements and a “perfect” bokeh

SPECS

	24mm	35mm	50mm	85mm	135mm
T-Stop Range	T1.6-T16	T1.5-T16	T1.3-T16	T1.5-T16	T2.2-T22
Angular Rotation of Iris	80°	80°	80°	80°	80°
Min. Marked Object Distance	300mm	300mm	450mm	850mm	1000mm
Close Focus from Lens Front	138mm	138mm	288mm	688mm	838mm
Angular Rotation to MOD Endstop	300°	300°	300°	300°	300°
Maximum Diagonal Angle of View for 24 x 36mm Format	83.9°	62.5°	46°	29°	18.8°
Length from the Front of Lens to Lens Mount (PL Mount)	110mm	110mm	110mm	110mm	110mm
Max Front Diameter	90mm	90mm	90mm	90mm	90mm
Total Weight	1360g	1340g	1380g	1410g	1240g

Focus Drive Gear	109 teeth 0.8 metric module
Iris Drive Gear	103 teeth 0.8 metric module
