OVERVIEW

The SWIT S-2840 RGBW Studio Panel LED Light is an RGBW 2:1 panel LED light, adopts 560pcs SMD LEDs, 400W power output, 10000Lux @ 1 meter.

Smart Phone APP control

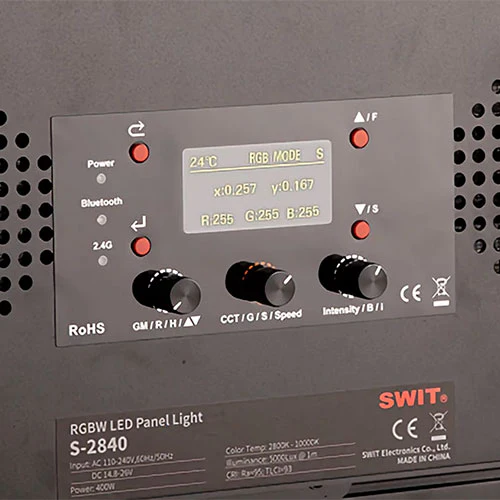

Available for IOS and Android. The S-2840 has a control panel on the rear side, and can also be operated by Smart Phone APP. IOS APP: App Store, search “RGB Panel”

CCT Mode

2800K-10000K, G/M adjustment. The color temperature mode achieves 2800K-10000K continuous adjustment and Green / Magenta ±1.00 adjustment.

RGB Mode

HSI, CIE and RGB pick. Support HSI mode, CIE mode, RGB mode to pick colors, by rear control panel value setting or smart phone APP.

GEL Mode

Built-in Rosco and Lee Gels. S-2840 has built-in 20x Rosco Gels and 20x Lee Gels to easily switch by rear control panel or smart phone APP.

Power Input

AC, V-mount DC

S-2840 supports SpeakOn AC power input and 4-pin XLR DC 14.8-26V input. Provides with standard V-mount plate and recommended to use SWIT high load battery S-8183S, PB-R290S, PB-H290S or PB-H260S to power.

(The output power will be limited to 200W if using DC-IN or V-mount battery)

SPECS

Model	S-2840
Color Temperature	2800K-10000K
G/M adjustment	±1.00
Luminance	10000Lux @ 1meter
Beam Angle	70°
Color rendering	CRI 95; TLCI 93
Input voltage	AC 100-240V, 50/60Hz; DC 14.8-26V
Power output	AC-IN 400W; DC-IN 200W
Dimension	629mm × 331mm × 195mm
Weight	32 lbs
