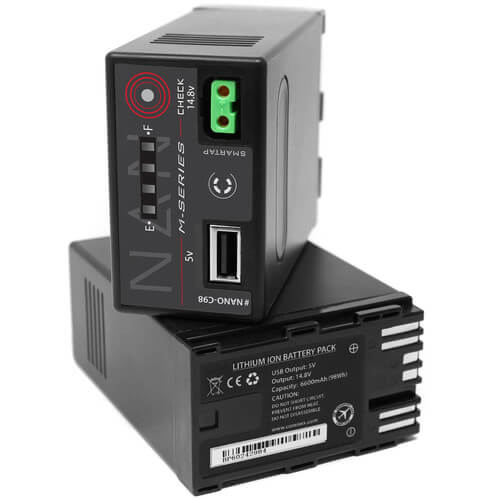

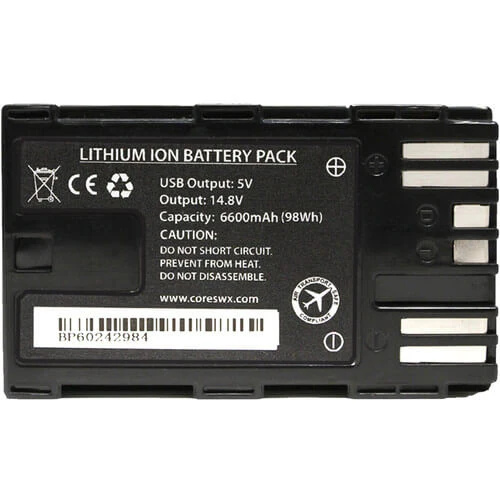

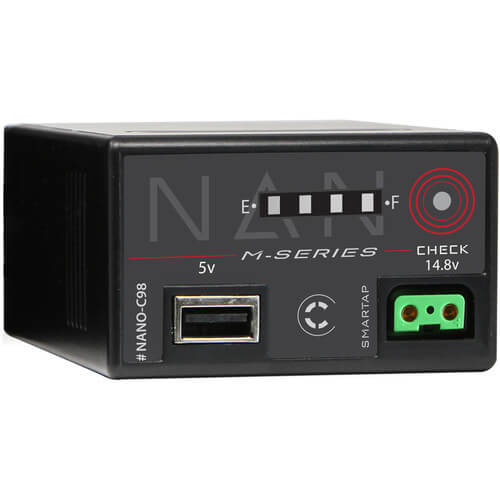

Core SWX NANO-C98 14.8V Battery with D-Tap for Select Canon Camcorders
OVERVIEW
- 14.8 VDC, 98Wh, 6600mAh Battery Pack
- For EOS C200, C300 Mark II, C500 Mark II
- 1 x D-Tap and 1 x USB Port
- D-Tap Supports SMBUS Communication
The Core SWX NANO-C98 14.8V Battery is designed for use with Canon cameras that utilize BP-A style batteries, such as the EOS C200, C300 Mark II, and C500 Mark II. Though small, the battery packs 14.8 VDC and 98Wh capacity (6600mAh). It features a built-in unregulated D-Tap port that supports a 5A draw, while the battery supports a total of 8A draw.
You can charge the battery via compatible OEM Canon chargers or by the D-Tap, and the D-Tap also passes SMBUS battery information. In addition to the D-Tap, the NANO-C98 also has a built-in USB port that outputs 5 VDC supporting a 3A draw. Incorporated into the battery is a push-button, 4-LED power gauge. The battery is thermally protected from overdraw.
Features
- Compatible with the C200, C300 Mark II, and C500 Mark II cameras
- SMBUS D-Tap port for powering cine-style accessories
- Charges in Canon OEM chargers
- 4-LED power gauge
- 98Wh, 6600mAh battery pack
- One USB Port
SPECS
| Mount / Series Type | Sony BP-U Series |
| Chemistry | Lithium-Ion |
| Capacity (Wh) | 98 Wh |
| Amp-Hours | 6600 mAh |
| Output Voltage | 14.8 VDC |
| Accessory Port | 1 x D-Tap Input/Output |
| Maximum Load (Accessory Port) | 5 A ( D-Tap ) |
| USB Output | 5 V, 3 A |
| Dimensions (W x H x D) | 3.85 x 2.6 x 1.65" / 97.79 x 66.04 x 41.91 mm |
| Weight | 0.9 lb / 408.23 g |
