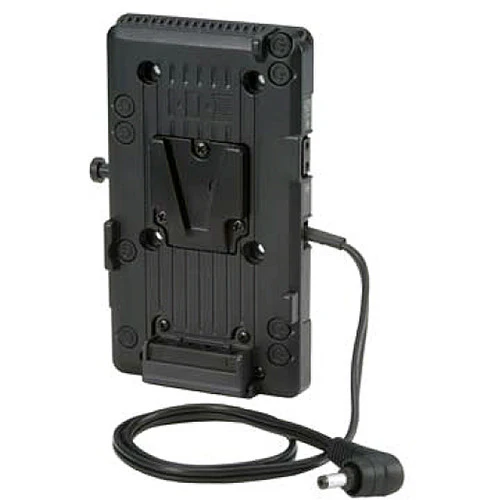

IDX System Technology V-Mount Adapter Plate for Canon C100, C300, C500
- Supports Any IDX ENDURA Battery
- Two Unregulated D-Tap Outputs
- Compatible with IDX A-CP(A) Cheese Plate
The IDX V-Mount Adapter Plate for Canon C100, C300, C500 enables any IDX ENDURA battery to power Canon C-series cameras. An integrated 20" DC cable plugs into the camera to power it. Two unregulated D-Tap outputs, each capable of taking a 50W load, are available for powering accessories.
A suitable mounting plate, such as the IDX A-CP(A) cheese plate, is required for mounting this adapter plate onto a rig. Four M3 x 8mm screws are included for attaching to a mounting plate.
| Cable Output Voltage | 8.4 V DC, max current 5 A (42 W) |
| D-Tap Output Voltage | 12 to 17 V DC |
| Maximum D-Tap Output | 50 W per port |
| Cable Length | Approx. 20" (50 cm) |
| Dimensions | 3.2 x 5.6 x .5" (8.2 x 14.2 x 1.2 cm) |
| Weight | Approx. 0.46 lb (210 g) |
| Packaging Info | |
|---|---|
| Package Weight | 0.5 lb |
| Box Dimensions (LxWxH) | 5.9 x 3.7 x 1.3" |
Product Information
Product Information
Shipping & Returns
Shipping & Returns
IDX System Technology V-Mount Adapter Plate for Canon C100, C300, C500
IDX System Technology V-Mount Adapter Plate for Canon C100, C300, C500
- Supports Any IDX ENDURA Battery
- Two Unregulated D-Tap Outputs
- Compatible with IDX A-CP(A) Cheese Plate
The IDX V-Mount Adapter Plate for Canon C100, C300, C500 enables any IDX ENDURA battery to power Canon C-series cameras. An integrated 20" DC cable plugs into the camera to power it. Two unregulated D-Tap outputs, each capable of taking a 50W load, are available for powering accessories.
A suitable mounting plate, such as the IDX A-CP(A) cheese plate, is required for mounting this adapter plate onto a rig. Four M3 x 8mm screws are included for attaching to a mounting plate.
| Cable Output Voltage | 8.4 V DC, max current 5 A (42 W) |
| D-Tap Output Voltage | 12 to 17 V DC |
| Maximum D-Tap Output | 50 W per port |
| Cable Length | Approx. 20" (50 cm) |
| Dimensions | 3.2 x 5.6 x .5" (8.2 x 14.2 x 1.2 cm) |
| Weight | Approx. 0.46 lb (210 g) |
| Packaging Info | |
|---|---|
| Package Weight | 0.5 lb |
| Box Dimensions (LxWxH) | 5.9 x 3.7 x 1.3" |
