SWIT FLOW500 HDMI Wireless Video Transmission System With Embeded Audio
OVERVIEW
The SWIT FLOW500 HDMI Wireless Video Transmission System With Embeded Audio is a wireless system that features SWIT's latest KUWI wireless technology, 5.1-5.9GHz license free bands, DFS comply, supports 3G/HD-SDI and HDMI (Max 1080p60) to transmit 500 feet Line-of-Sight distance. The system is pure hardware connection, plug and play, which is widely used in director monitoring, drone, ropeway camera, steadicam etc.
Input & Output
The Transmitter (Tx) has 2 omni antennas, supports
- 1x 3G/HD-SDI input
- 1x 3G/HD-SDI loop output
- 1x HDMI 1.3 input
The Receiver (Rx) has 4 omni antennas, supports
- 2x 3G/HD-SDI output
- 1x HDMI 1.3 output
SDI & HDMI formats:
- 1080p60, 1080p59.94, 1080p50
- 1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
- 1080psf23.98, 1080psf24
- 1080i60, 1080i59.94, 1080i50;
- 720p60, 720p59.94, 720p50
Strong Wall-Cross Performance
This wireless system supports 500ft (Line-of-sight) reliable wireless transmission, and featured stronger wall-cross performance due to both RF optimize and image quality optimize, so that will keep video transmission without date lost or crash comparing to regular 5GHz wireless transmitters.
* Supports SDI & HDMI embedded audio (CH1&2) transmission.

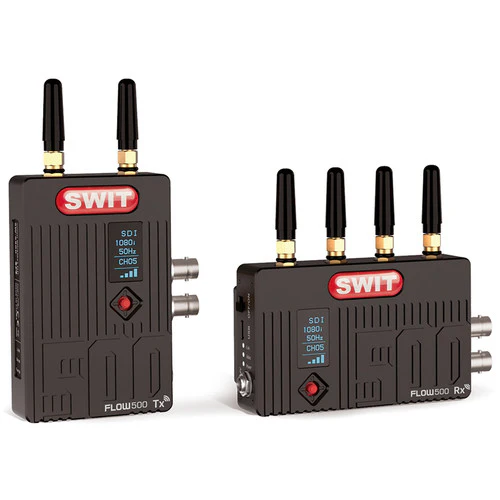

OLED Display & Channel Switch
The FLOW wireless works under 5.1-5.9GHz, with built-in wireless scanner, and detect wireless condition of all frequencies, automatically jump to the best wireless channel to keep reliable connection and transmission, and DFS comply. You can also switch the wireless channels manually from 7 Non-DFS restricted channels. Both Tx and Rx are equipped with OLED to display signal format, wireless channel number and signal strength.
Multicast and Double Encryption
Support 1 transmitter to 4 receivers reliable multicast mode. The transmitter and receivers are paired and double encrypted by private transmission protocol and by AES128, in order to protect the footages.
Reclock & Color Reproduction
To ensure the quality of black level, signal noise and color reproduction of the wireless received signal, the FLOW series wireless receiving supports signal re-clock and accurate color reproduction.
USB Firmware Update
The FLOW series wireless provides a Micro USB port, supports OTG USB Firmware update for future more functions.
Power Supply
The power consumtion of Tx and Rx are less than 8W. Both Tx and Rx provide NP-F DV battery plate, and 7-34V lockable DC input.
